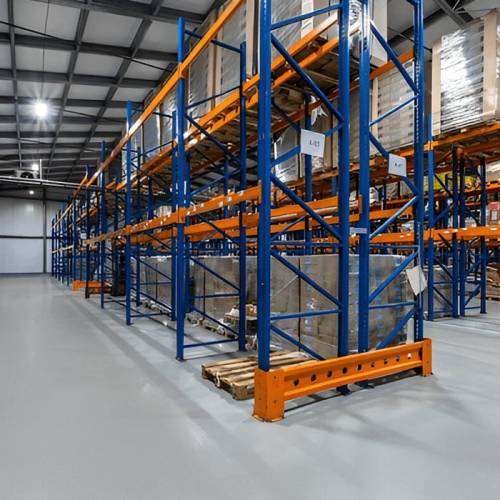

Heavy Duty Pallet Rack in Delhi – Made at Our Bahadurgarh Plant

Our Heavy Duty Storage Pallet Racks are built from 500 kg to 2000 kg per beam level as a uniformly distributed load, with beam spans of 1500 to 3000 mm and frame depths of 600 to 1200 mm. The exact figure depends on the beam section and the span, so send us the heaviest pallet weight and how many pallets sit on one level.

Our Heavy Duty Warehouse Pallet Racks are built from 500 kg to 2000 kg per beam level as a uniformly distributed load, with beam spans of 1500 to 3000 mm and frame depths of 600 to 1200 mm. The exact figure depends on the beam section and the span, so send us the heaviest pallet weight and how many pallets sit on one level.

Our Heavy Duty Industrial Pallet Racks are built from 500 kg to 2000 kg per beam level as a uniformly distributed load, with beam spans of 1500 to 3000 mm and frame depths of 600 to 1200 mm. The exact figure depends on the beam section and the span, so send us the heaviest pallet weight and how many pallets sit on one level.

Our Heavy Duty Pallet Rack Systems are built from 500 kg to 2000 kg per beam level as a uniformly distributed load, with beam spans of 1500 to 3000 mm and frame depths of 600 to 1200 mm. The exact figure depends on the beam section and the span, so send us the heaviest pallet weight and how many pallets sit on one level.

Our Heavy Duty Pallet Storage Systems are built from 500 kg to 2000 kg per beam level as a uniformly distributed load, with beam spans of 1500 to 3000 mm and frame depths of 600 to 1200 mm. The exact figure depends on the beam section and the span, so send us the heaviest pallet weight and how many pallets sit on one level.

Start with the heaviest single pallet you will store, not the average. Multiply by the number of pallets that will sit on one beam level, which is usually two or three depending on beam span. That total is the figure the beam pair must carry as a uniformly distributed load. Then check the frame separately: add every level together and that is what the upright and its bracing must carry down to the floor. Our standard range is 500 kg to 2000 kg per beam level.

Selective gives you a clear aisle to every pallet, so any pallet can be picked at any time. Double-deep stores pallets two rows deep, which adds pallet positions in the same floor area but means the front pallet must be moved to reach the one behind, and it needs a double-reach truck. Drive-in lets the truck enter the rack structure itself and gives the highest density, but you lose selectivity entirely, so it suits a small number of SKUs held in quantity. Selective suits most operations; density systems pay off when you have few SKUs and many pallets of each.

FIFO means first in, first out. Flow racking uses a gravity roller track so pallets or cartons loaded at the back present themselves at the pick face in the order they were loaded. It matters where stock has a shelf life or a batch number that must rotate, such as food, pharmaceutical and chemical storage. If your stock does not age, plain selective racking is usually the better value.

Aisle width is set by the truck, not by the rack. A counterbalance forklift needs a wider aisle than a reach truck, and a reach truck needs more than a very narrow aisle machine. This is why we ask what handles the pallets before laying out the bays: choosing the rack first and the truck afterwards is how warehouses end up with aisles that do not work.

Beam connectors are supplied with safety pins as standard so a beam cannot be lifted out by a rising fork. Column guards, end-of-aisle barriers, pallet support bars and mesh decking are quoted as options. We recommend guards anywhere a truck turns.

Yes. Delhi, Gurugram, Noida, Faridabad, Ghaziabad, Sonipat, Rohtak and Manesar are routine deliveries from Bahadurgarh, and we dispatch across India as a manufacturer, supplier and exporter.
